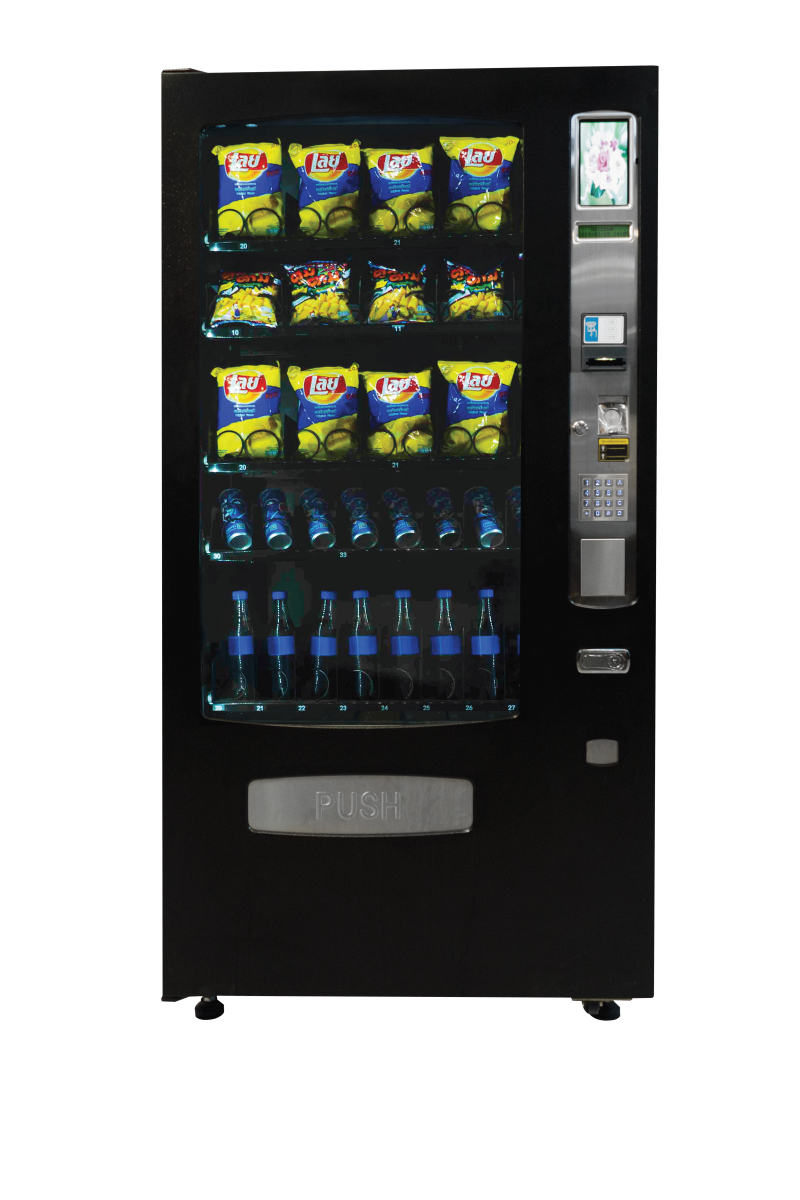

CLASSIC SERIES 4000x (Medium x IoT)

WVC series have been the most popular when it comes to investment performance. The series are suitable for meeting your ROI goal due to their reasonable prices, very low management costs, and long life service (more than 10 years). They have been bought to reduce costs concerning employees and also to lift up the service level of its area.

CLASSIC SERIES 4000x (Medium x IoT)
Vending assure guaranteed delivery system using sensors to hold the credit until the product is delivered
Danfoss cooling system Excellent cooling unit with German compressor (Danfoss)
Smart vending (IoT) Online Vending Management System that allows you to control all of your machines in front of your PC
Supported all type of payment Cash with coin change, QR payment and RFID card

General features

7” Touchscreen which can be monitored and managed from distance through the VMS (web based system)
Standard User interface which includes screen saver, product selection, product detail & payment
Full size viewing window for a great display of all products
Improved merchandising with 3 separate brilliant LED lighting strips
Double glazed heated glass to avoid any condensation build up
VendAssure™ – guaranteed delivery system using sensors to hold the credit until the product is delivered
Stainless steel coin insert slide to prevent fraud and temperament
Secure door with wrap around anti-theft lock.
Door opens 180 degrees for restocking, allowing a row of vending machines side by side.

Energy efficiency

LED lighting to reduce energy cost
Fully insulated & strong cabinet
Sleep mode to reduce wasted electrical consumption

Cooling

Modular cooling system, easily for front cleaning and service
Excellent cooling unit with German compressor (Danfoss)
Dual temperature zone with high quality insulation plate

Machine system and Packaging

Spiral and conveyer vending machine support wide range of packaging such as bottle, can, bag, box and etc.
Example of product: beverage, snack, chilled food, ready to eat fruit, cosmetic, toy, gadget, umbrella and etc.

Internal Temperature

3°C-8°C and 14°C-25°C for dual temp zone

Payment system

Cash (bank, coin) with coin change<br>• QR payment (Rabbit LINE Pay, Promtpay, Airpay, WeChat, AliPay)<br>• RFID card (credit card, food court card, employee ID card)<br>

Size and Weight

Height 183 cm.
Width 95 cm.
Depth 83 cm.
Weight 320 kg.

Storage Capacity

Maximum 864 pcs
Beverage 300 pcs
Maximum 48 SKU

Color

Online management system

Web-based vending machines management system

Wireless connection

WiFi, sim card

Display

7” Touchscreen which can be monitored and managed from distance through the VMS (web based system)

Video

Video type: MP4
Maximum size per file 80 MB
Video quality: 1280x720 pixel
Code format H.264
Frame rate: 24 KPS
Target bitrate 1 Mbps
Max bitrate 1.2 Mbps

Audio

Audio codec AAC
Sample rate 44 KHz
Bitrate 128 kbps

Operating requirement

Voltage: 220V-240AC
Frequency: 50Hz
Plug socket: Type B with grounding system

Power consumption

580W

Refrigerator system

¾ HP R-134a (280g charge)

Air noise

Less than 60DB
  • Free delivery
    Bangkok metropolitan region
  • Financial support
    Purchase by installment is available with minimum of 5% interest
  • Sales support
    Please contact 02-056-9538, 097-070-5753
  • Worldwide Care
    Lifetime unlimited access to our technical support team

Warranty and Insurance Policies

1. WWV will insure all damaged or malfunctioning parts caused by factory production for 1 year from the day the machine is set up or the day WWV sends out delivery note, whichever occurs first.
2. Warranty does not include on-site inspection and maintenance, which does not concern damages caused from no. 1.
3. If the damage occurs according to no. 1 and the machine is still within the warranty, WWV will responsible for all fees occurred (applied to all machines within Bangkok metropolitan region, for those out of this area, transportation fees may be charged accordingly)
4. Warranty will expire immediately, if the machine is being transported NOT by WWV or its authorized partners.
5. Warranty will expire immediately, if the machine is being fixed, edited, renovated and/or changed in any parts NOT by WWV and its authorized partners.
6. Warranty will NOT be responsible for damages caused by the followings;
6.1. Misusage
6.2. Unauthorized fixation and/or edition.
6.3. Unauthorized transportation.
6.4. Insufficient maintenance advised by WWV.
6.5. Accidents and/or natural disasters
6.6. Inappropriate electricities
6.7. Customers using the machine
6.8. Scratches, and other abrasions on the surface of the machine
6.9. Animals (in some case, warranty may expire immediately)
6.10. Other cases that do not comply to no. 1.
7. All WWV products are non-refundable.
8. Warranty will expire immediately, if the machine is being shipped out of country.
9. During warranty, WWV may fix or change the machine depending on its discretion.
10. After fixation and/or edition, the warranty will continue as before.
11. WWV reserves the right to calculate the fees of fixation and edition accordingly.
12. WWV reserves the right to amend the warranty conditions without advanced notifications.
